Your tournament deserves our best court

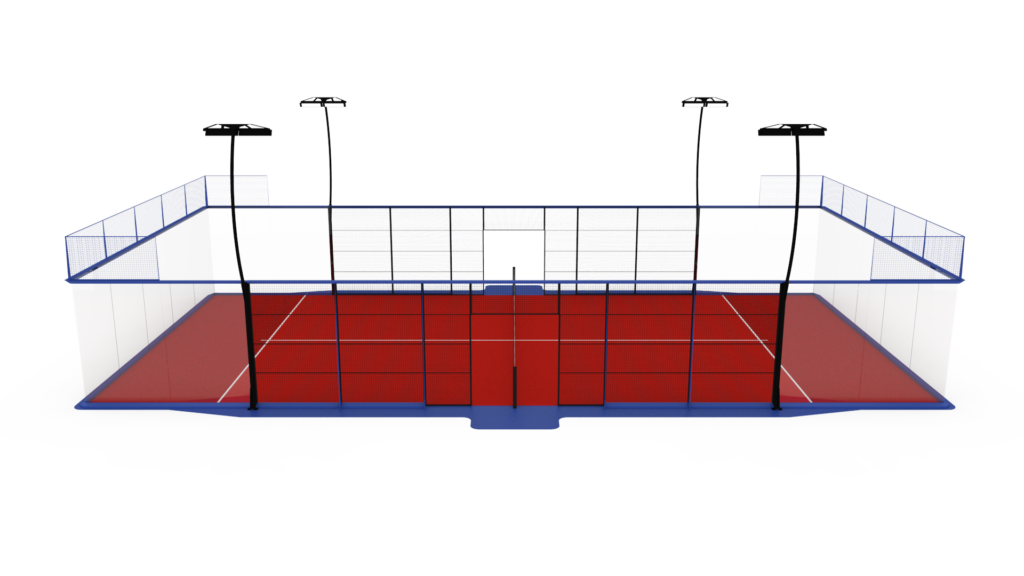

Our court conceived to push the limits of padel

Premium design

Our Infinity Tournament has a vision: spreading the passion for padel worldwide. As pioneers in court design, we search for strategic partners to co-create and transform the industry. Together, we will innovate, but also expand the frontiers of padel. This innovative and fully immersive court is the result of the joint work with recognised eminences from the Polytechnic University of Valencia, an international prestigious engineering studio, the Diagonal Padel Academy and our experience of more than 25 years manufacturing padel courts, designed not only for professional players, but also to bring the best court to the whole world.

Infinity Tournament court complies with the regulations of the International Padel Federation and with the most restrictive requirements established by the Eurocodes, reducing costs in manufacturing, transport and assembly, thereby inducing a lower carbon footprint.

Technical Specifications

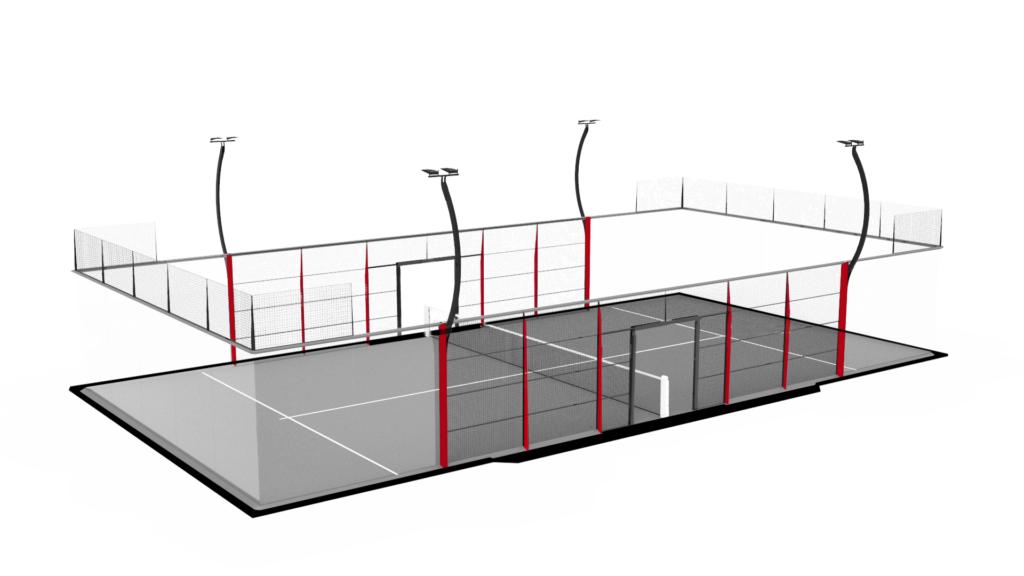

Patented structural system

Panoramic walls supported by a triangular profile (150x70mm) along the 60 perimetral meters of the structure, with a patented structural system designed to obtain the maximum resistance required by the Eurocode.

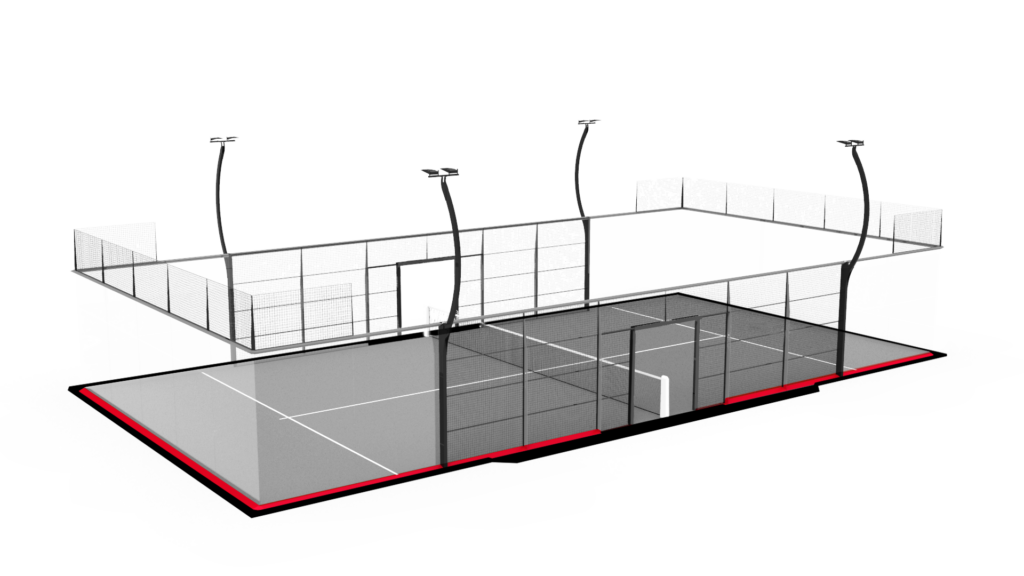

Patented anchor plates system

It anchors and levels the metal structure, as well as supporting the glass. Thick plates along the 60 perimetral meters of the structure, uniformizing the distribution of loads in a much larger area achieving a much more stable game and resistance, working all together as a block. The complete structure is anchored to the ground with a total of 182 screw-bolts.

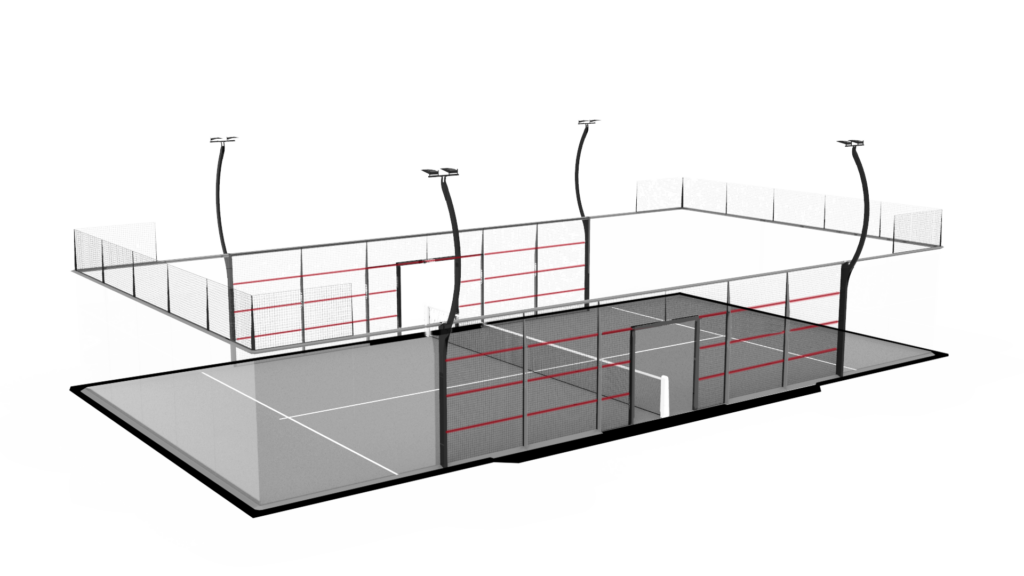

S355 carbon steel

All the metal used to produce the metallic structure is carbon steel S355 full galvanized without using welds, & the mesh frames are manufactured with Magnelis® steel.

Support of the structure

Four 160x80x3mm pillars and 8mm thick buttress-plates (customizable) are the central support of the structure, designed to distribute both the load and the stress of the complete structure.

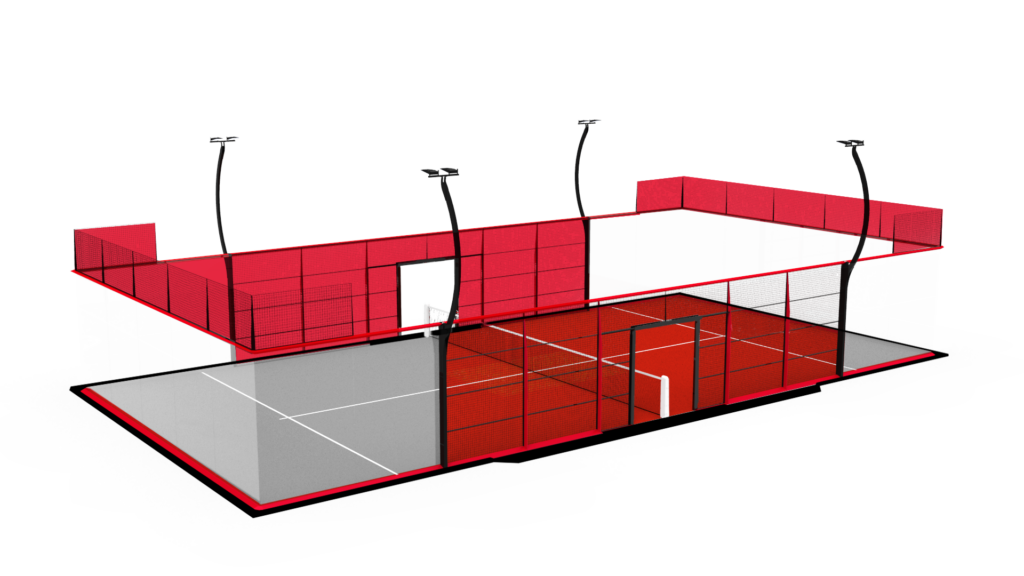

Certified paint

Qualisteelcoat® C4H and C5VH (ISO 12944).

Patented thick frames

Magnelis® steel frames (54 pieces) of 5mm thickness with inner 50x50x4 mm electrowelded wire mesh. Designed as an anti-injury system that at the same time provides an unbeatable aesthetic finish, guarantees the continuity of the homogeneous mesh with the other frames, and maximizes the longterm resistance against deformations caused by blows.

Net posts matching the structure

Rounded shape without corners, with an internal tensioning system accessible with a hinged lid and hidden anchor plate to avoid injuries.

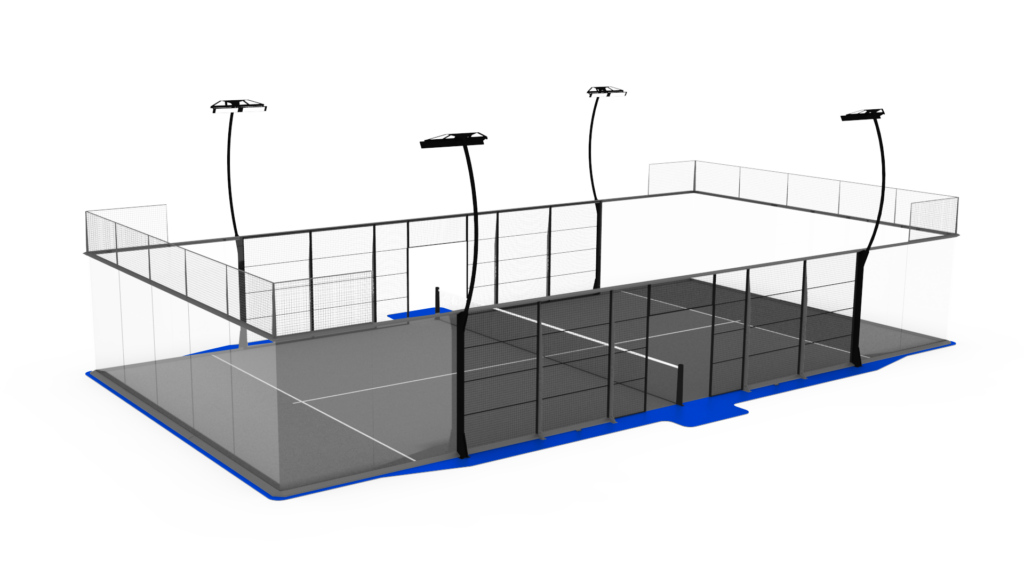

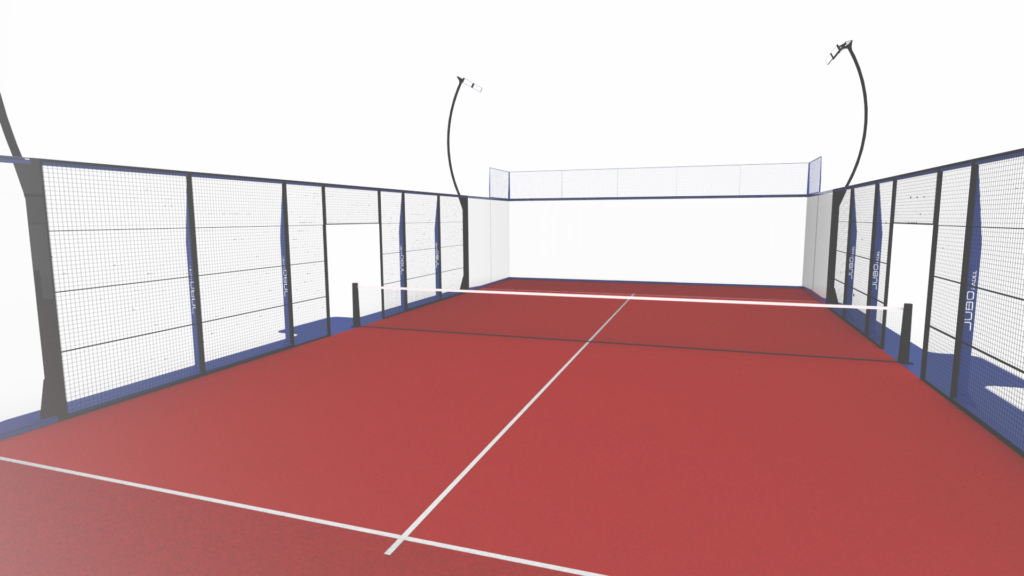

Large open entrances

Two large open entrances in the centre of the court to facilitate players’ quick and safe access and exit.

Performance
needs quality

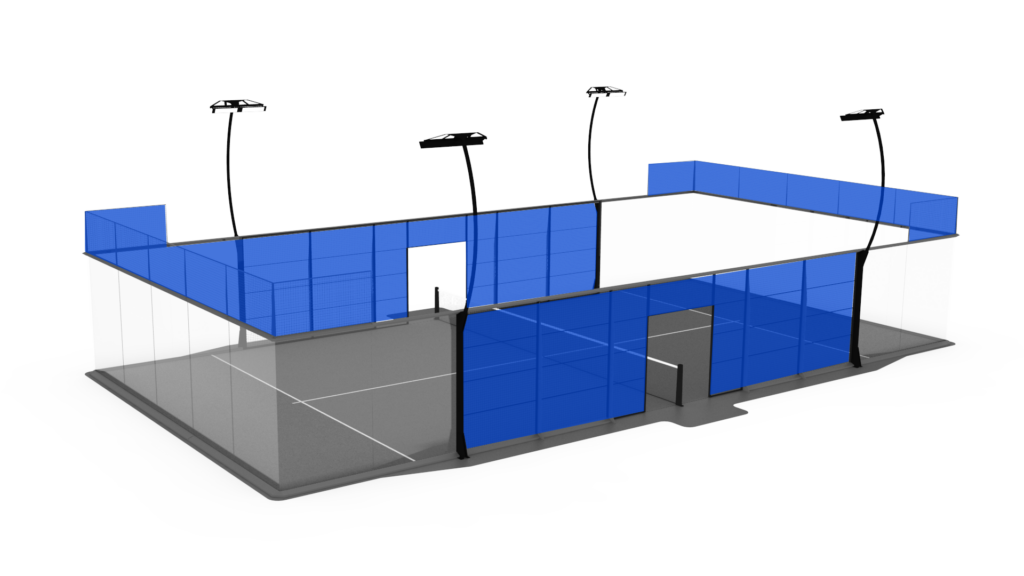

Tempered Glass

According to the standards of the International Padel Federation for tempered glass, 12mm thick with flat polished edge, with perfect planimetry and fully homologated according with the WPT, Premier Padel and APT designs: 18 glasses of 2995x1995mm, with countersunk holes (108m²). Rubber joints of the highest quality, with the same thickness as the metal section, to absorb shock and vibration of the glass against the metal structure. Anchoring of tempered glass with M10 countersunk screws A4 stainless steel.

Patented structural system meets Eurocodes standards.

A perfect pop-up court for your tournament

Designed to be able to assemble and disassemble the court without losing quality and playability.

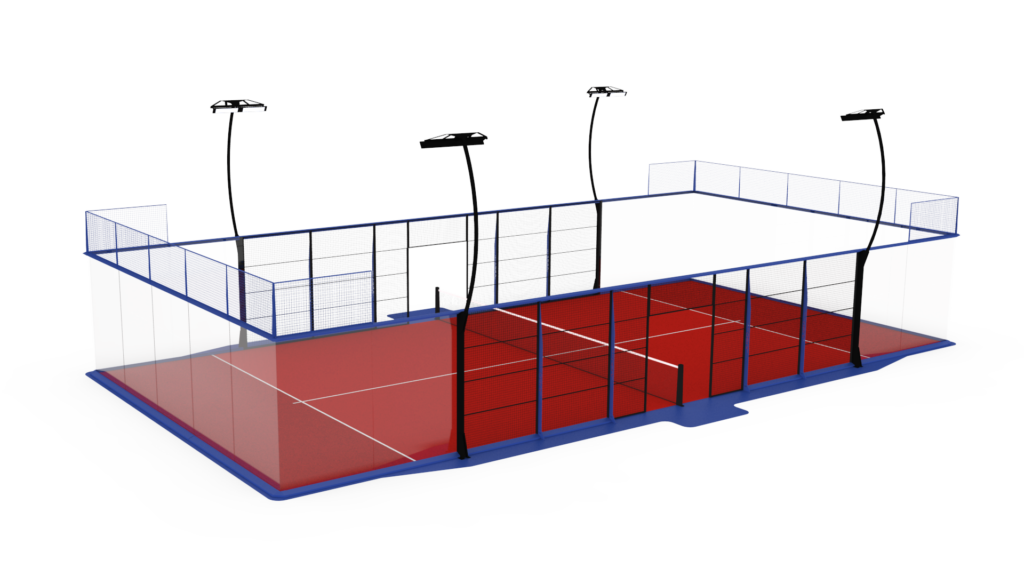

Turf model: Supercourt

MONDO XN SUPERCOURT (Official Turf of World Padel Tour) top quality monofilament in green, red or blue colour. Turf made from STX and XNOVA, both polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 250 / 160 μm thick. 6 monofilament fibres inserted per knot and 46.200 knots per m2 (total: 554.400 filaments per m2). 10.000 Dtex turf with a total fibre weight of 1.393 g/m2. Support base finished in polyurethane to ensure better long-term finish, with a total product weight of 2.208g/m2.

Colour options
Turf model: Pro Turf 240

PRO TURF 240 top quality monofilament in blue, green, clay, red, pink or black colour. Turf made from polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 170 μm thick. 6 monofilament fibres inserted per knot and 50.394 knots per m2 (total: 806.304 filaments per m2). 8.800 Dtex turf with a total fibre weight of 1.353 g/m2. Backing made with a dual layer woven polypropylene with fibrelocked fleece and latex, with a total product weight of 2.504/m2.

Colour options

Efficient lighting

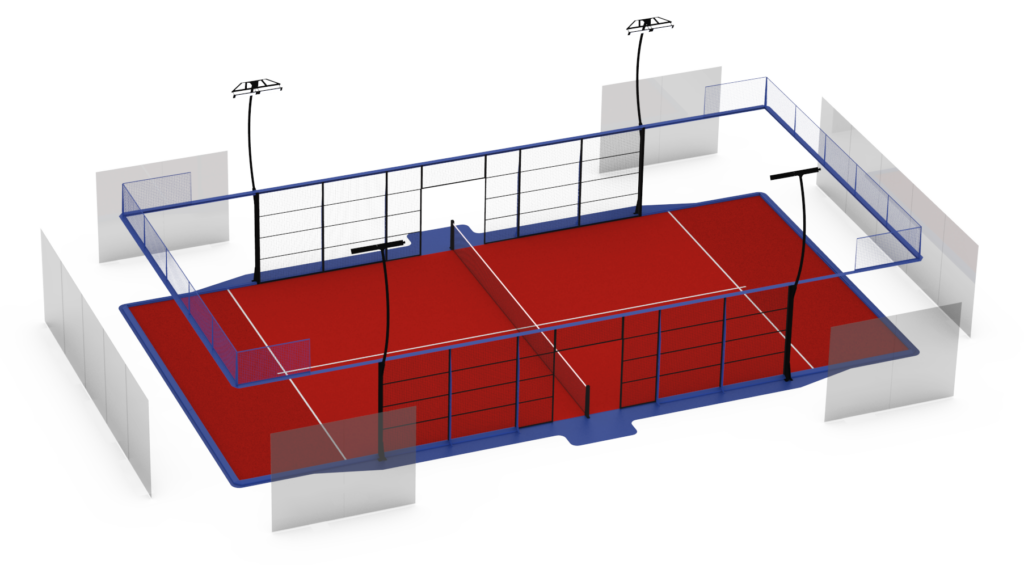

Pillars with LED ultra slim floodlights, with high luminosity, high efficiency heatsink, and high quality driver. Infinity Tournament court has the option of adding ambilight around its perimeter.

Lighting LED options according to the project

We can do whatever
you need

You can personalize your court with structure, colour, turf and more options. If you need something specific out of the options don’t worry, we can do it too.

  • Structure colour
  • Zinc primer
  • Turf model
  • Lighting & illumination
  • Doors
  • Customizable reinforcements
  • Protectors
  • Ball-stop nets
  • Accesories
