Our best court conceived to create an perfect padel project

Designed to improve

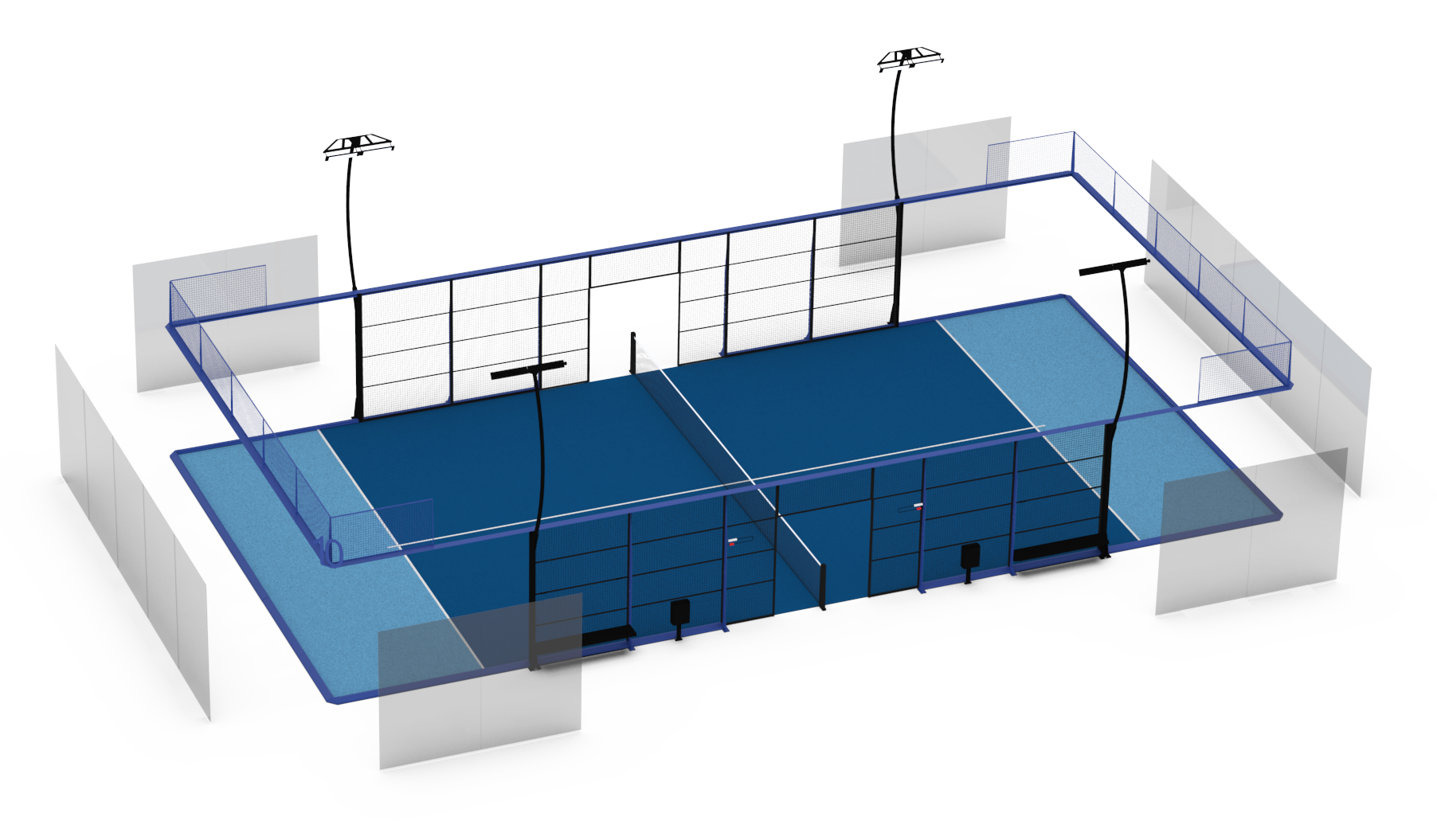

This innovative and fully immersive court is the result of the joint work with recognised eminences from the Polytechnic University of Valencia, an internationally prestigious engineering studio, the Diagonal Padel Academy and our experience of more than 25 years manufacturing padel courts, designed not only for professional players, but also to bring the best court to the whole world.

Our patented INFINITY court complies with the regulations of the International Padel Federation and with the most restrictive requirements established by the Eurocodes, reducing costs in manufacturing, transport and assembly, thereby inducing a lower carbon footprint.

Technical Specifications

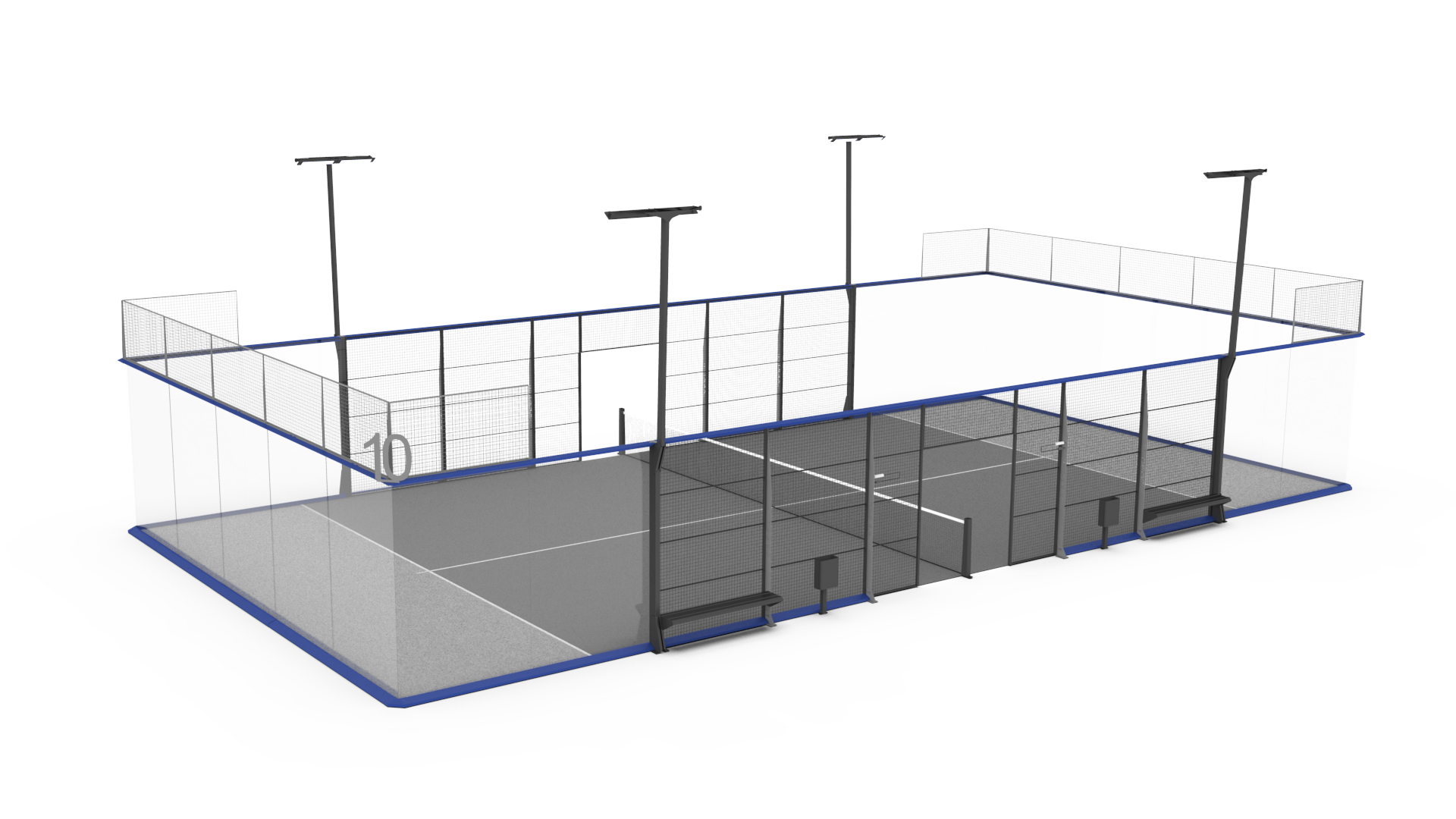

Patented structural
system

Panoramic walls supported by a triangular profile (150x70mm) along the 60 perimetral meters of the structure, with a patented structural system designed to obtain the maximum resistance required by the Eurocode.

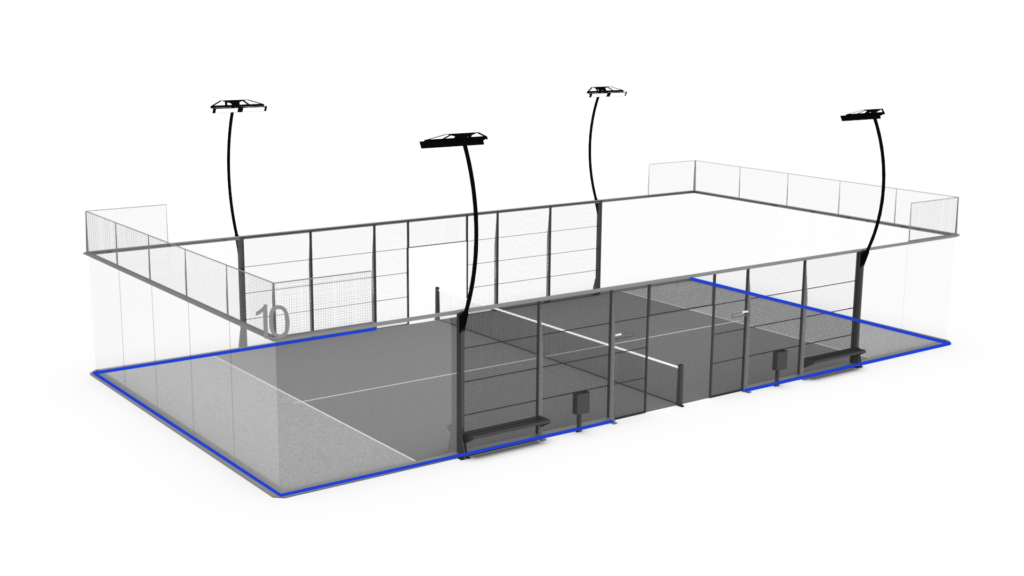

Patented anchor plates system

That anchors and levels the metallic structure, as well as supports the glasses. Thick plates along the 60 perimetral meters of the structure, uniformizing the distribution of loads in a much larger area achieving a much more stable game and resistance, working all together as a block. The complete INFINITY structure is anchored to the ground with a total of 182 screw-bolts.

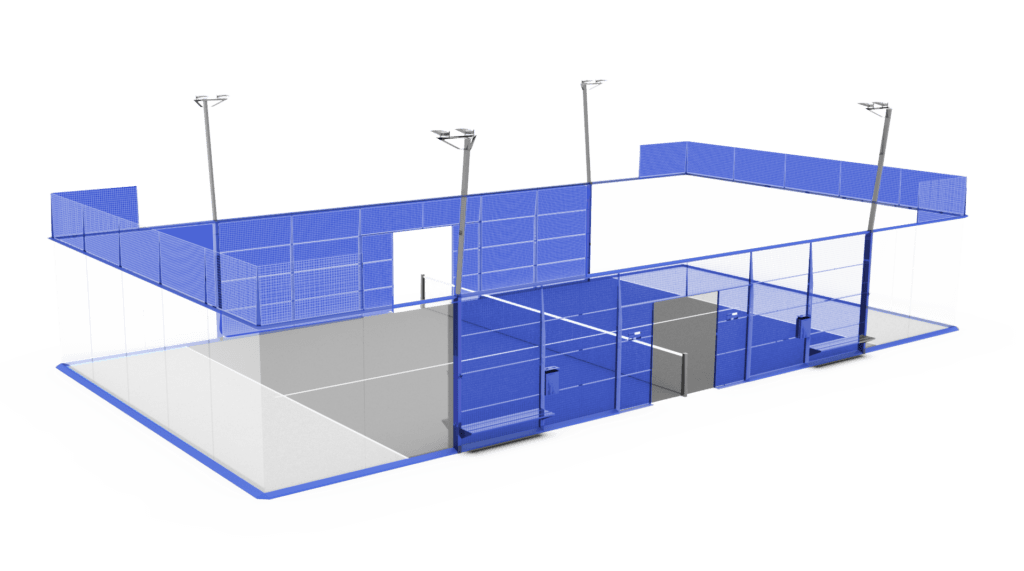

S355 carbon steel

All the metal used to produce the metallic structure is carbon steel S355 full galvanized without using welds, & the mesh frames are manufactured with Magnelis® steel.

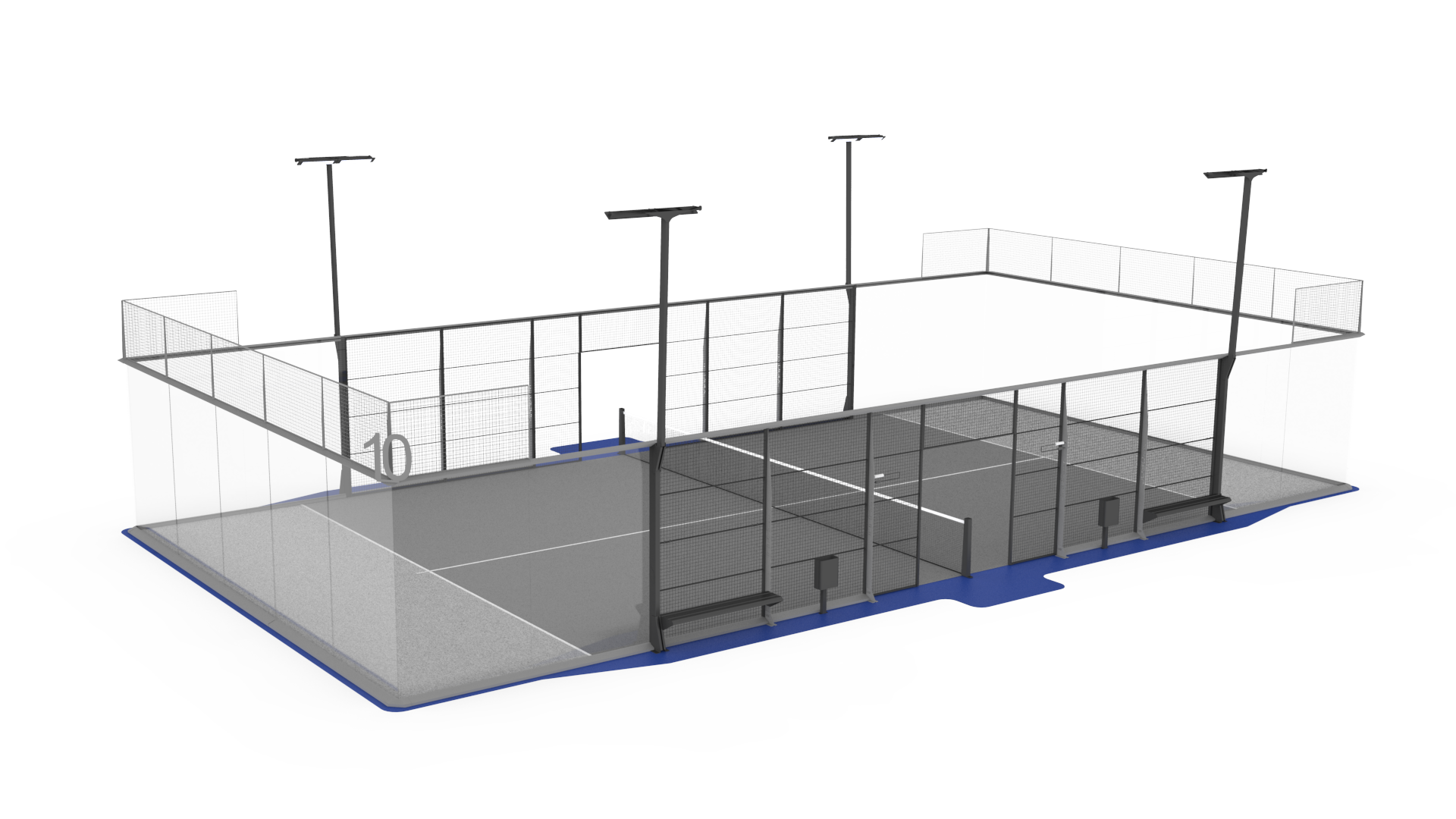

Support of the structure

Four 160x80x3mm pillars & eight 8mm thick buttress-plates (customizable) are the central support of the structure, designed to distribute both the load and the stress of the complete structure.

Certified paint

Qualisteelcoat® C4H and C5VH (ISO 12944).

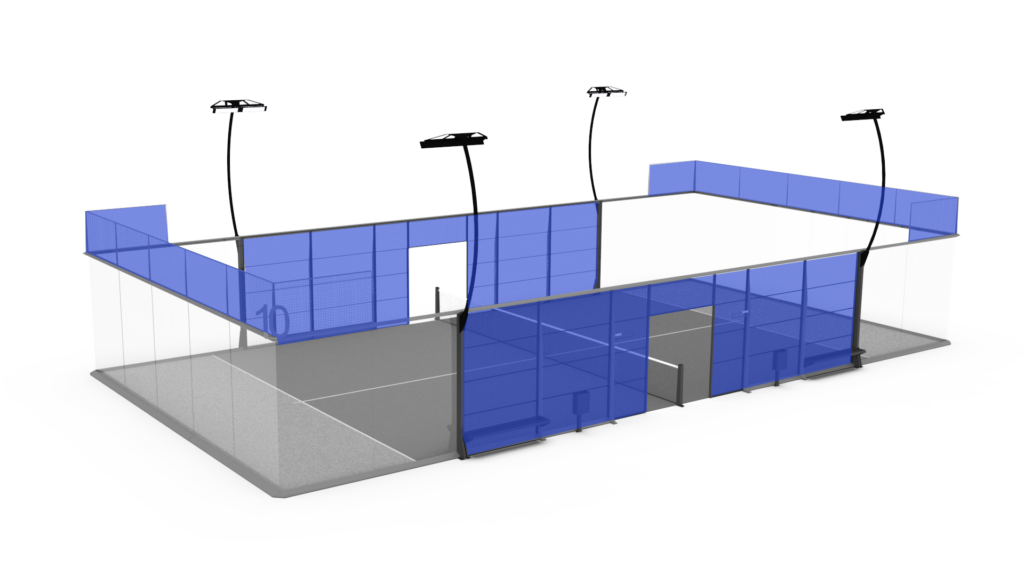

Patented thick frames

5mm thick Magnelis® steel frames (54 pieces) with inner 50x50x4mm electrowelded wire mesh. Designed as an anti-injury system that at the same time provides an unbeatable aesthetic finish, guarantees the continuity of the homogeneous mesh with the other frames, and maximizes the longterm resistance against deformations caused by blows.

Net posts matching the structure

Rounded shape without corners, with an internal tensioning system accessible with a hinged lid and hidden anchor plate to avoid injuries.

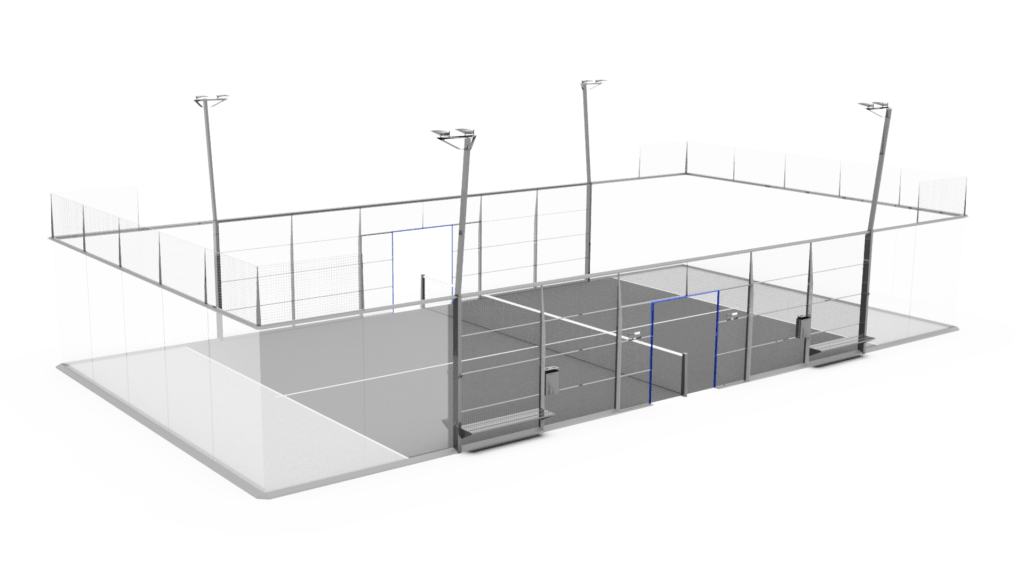

WPT type open entrances

2 large open entrances in the centre of the court to facilitate players’ quick and safe access and exit.

Collaborations

Elite players collaborations

AGUSTÍN GÓMEZ SILINGO & MARTA MARRERRO

We work together with two outstanding padel players.
One of the players with the longest and most successful careers in WPT history, Agustin Gomez Silingo, was a key member of the team that developed our Infinity court.
His expertise has been essential in providing us with professional player feedback, enabling us to create the best court on the padel market.
For the past twelve years, Marta Marrero has been regarded as one of the top padel players in the world. She won 25 professional championships and was ranked first in the world in 2016 and 2019 before temporarily retiring from the World Padel Tour. She currently owns five Aurial clubs in Catalonia, each with its own padel academy where anyone can enjoy playing in our Infnity court.
We are proud to collaborate and share the passion for padel with these two great professionals.

TOP WPT PLAYERS

Performance
needs quality

Tempered Glass

According to the standards of the International Padel Federation for tempered glass, 12 mm thick with flat polished edge, with perfect planimetry and fully homologated according with the WPT, Premier Padel and APT designs: 18 glasses of 2995 x 1995 mm, with countersunk holes (108 m²). Rubber joints of the highest quality, with the same thickness as the metal section, to absorb shock and vibration of the glass against the metal structure. Anchoring of tempered glass with M10 countersunk screws A4 stainless steel.

Patented structural system meets Eurocodes standards.

Choose the structural system you need

Depending on the weather conditions to where the court will be exposed to, or if it needs to be a fixed or temporary installation, but always enjoy the same performance, maintaining maximum elegance and the best design, regardless of whether you play indoors or on the roof of a skyscraper.

Strength and resistance to be able to withstand normal weather conditions. Patented structural system designed to obtain the best game performance, at all levels and intensively. The recommended option for most facilities, paddle clubs, hotels and private homes.

Same performance as Infinity, but structure is resized to provide the greatest solidity, robustness and resistance, making it able to withstand the most extreme weather conditions and comply with the toughest Eurocode requirements.

Designed to be able to assemble and disassemble the court without losing quality and playability. With portable kit to avoid anchoring to the ground. Suitable for temporary or fixed installations, it’s the an ideal option for events.

Turf model: Supercourt

MONDO XN SUPERCOURT (Official Turf of World Padel Tour) top quality monofilament in green, red or blue colour. Turf made from STX and XNOVA, both polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 250 / 160 μm thick. 6 monofilament fibres inserted per knot and 46.200 knots per m2 (total: 554.400 filaments per m2). 10.000 Dtex turf with a total fibre weight of 1.393 g/m2. Support base finished in polyurethane to ensure better long-term finish, with a total product weight of 2.208g/m2.

Colour options
Turf model: Padel MFT

PADEL MFT top quality monofilament in blue, green, clay, red, pink or black colour. Turf made from polyethylene fibre, texturized (curly) monofilaments, 10 mm height and 170 μm thick. 6 monofilament fibres inserted per knot and 50.394 knots per m2 (total: 806.304 filaments per m2). 8.800 Dtex turf with a total fibre weight of 1.353 g/m2. Backing made with a dual layer woven polypropylene with fibrelocked fleece and latex, with a total product weight of 2.504/m2.

Colour options

Efficient lighting

Pillars with LED ultra slim floodlights, with high luminosity, high efficiency heatsink, and high quality driver.

Our Infinity court has the option of adding ambilight around its perimeter.

Lighting LED options according to the project
PowerLuminous fluxLuminous efficacyPower factorColour temperatureBeam angleLifetime
Club version150 W22,500 Lm150 Lm/W>0,954000 K120°50,000 hours
Master version200 W30,500 Lm150 Lm/W>0,954000 K120°50,000 hours

All you need
we can do it

You can personalize your court with structure, colour, turf and more options. If you need something specific out of the options don’t worry, we can do it too.

  • Structure colour
  • Zinc primer
  • Turf model
  • Lighting & illumination
  • Doors
  • Customizable reinforcements
  • Protectors
  • Ball-stop nets
  • Accesories
