An open and certified panoramic padel court designed for professional performance, maximum visibility and a game without barriers.
The perfect stage for champions, because padel has no barriers.
Design without barriers

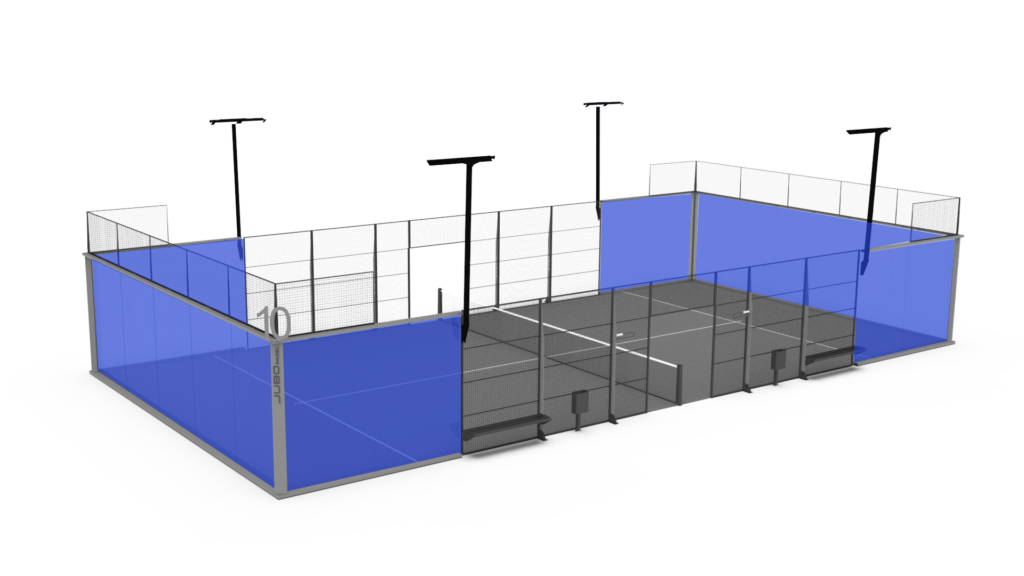

A certified panoramic padel court designed for maximum visibility.
Panoramic offers a unique experience through a differential design that redefines the limits of the game and opens the court to players and spectators.
Specially designed for professional padel projects, it maintains structural robustness while enhancing the visual experience with a clean panoramic aesthetic and a wider view of the game.
As a UNE 147201:2024 certified padel court designed according to Eurocode structural criteria, Panoramic brings together safety, quality and professional performance in one of the most visually open court systems in the JUBOpadel portfolio.
Technical Specifications
Performance built
on technology

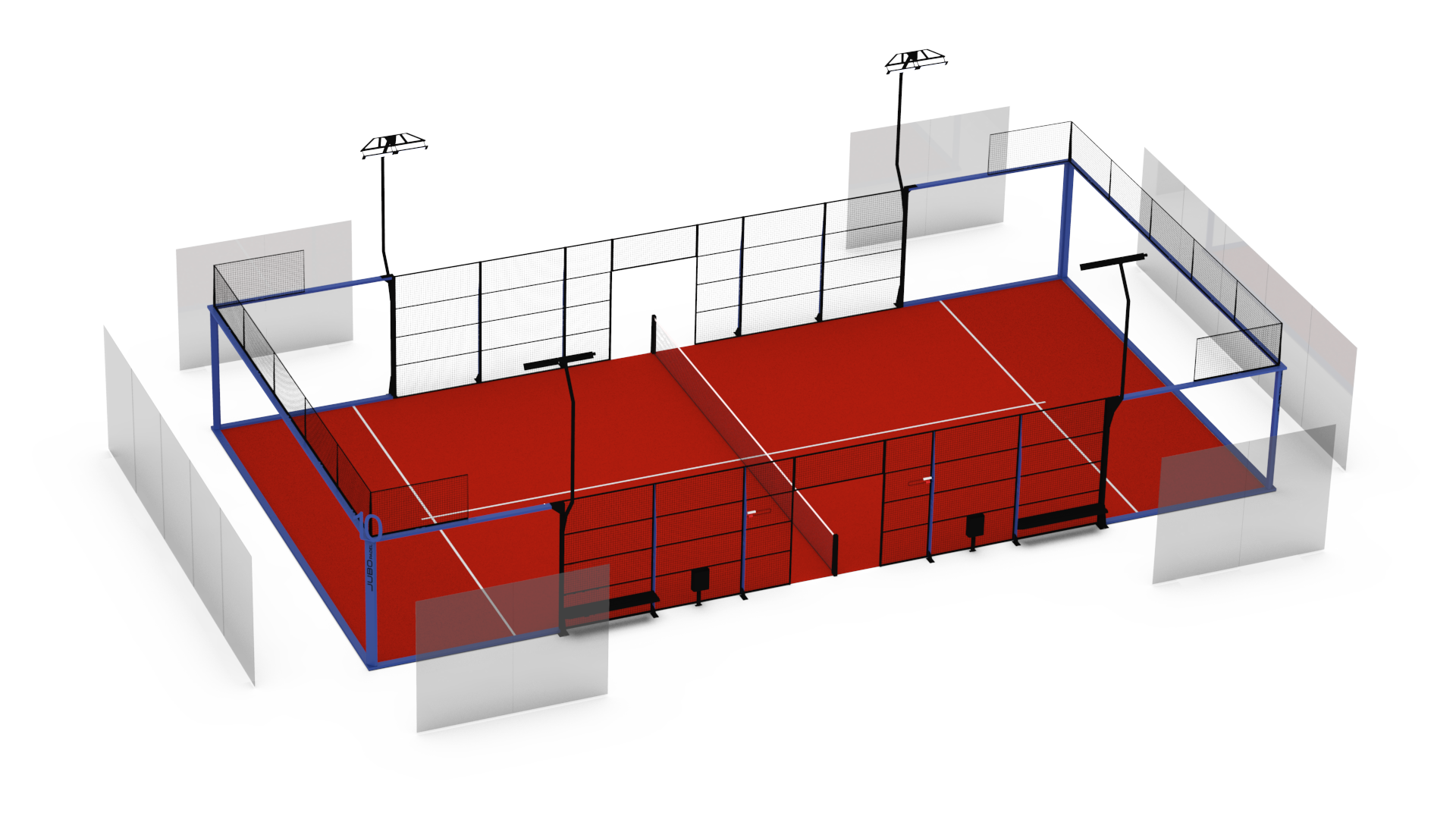

Tempered glass
In accordance with the International Padel Federation standards for tempered glass, Panoramic uses 12 mm thick glass with flat polished edges, perfect planimetry and competition-ready design.
The court includes 18 glass panes of 2995 x 1995 mm with countersunk holes, covering a total of 108 m². Each pane is anchored with countersunk screws protected by UV-treated polyamide sleeves, together with locknuts, nuts and screws in 316-grade stainless steel, metric 10 mm.
High-quality neoprene gaskets absorb shocks and vibrations between the glass and the metal structure, improving safety, durability and playing comfort.
Glass pane characteristics: 2995 mm width, 1995 mm height, 12 mm thickness and 180 kg weight. Bird-friendly glass is available upon request.
Patented structural system meets Eurocodes standards.
Versions. Choose the structural system your project needs.
Depending on the weather conditions to which the padel court will be subjected, or whether the installation needs to be fixed or temporary, Panoramic keeps the same playing performance, maximum elegance and professional design.

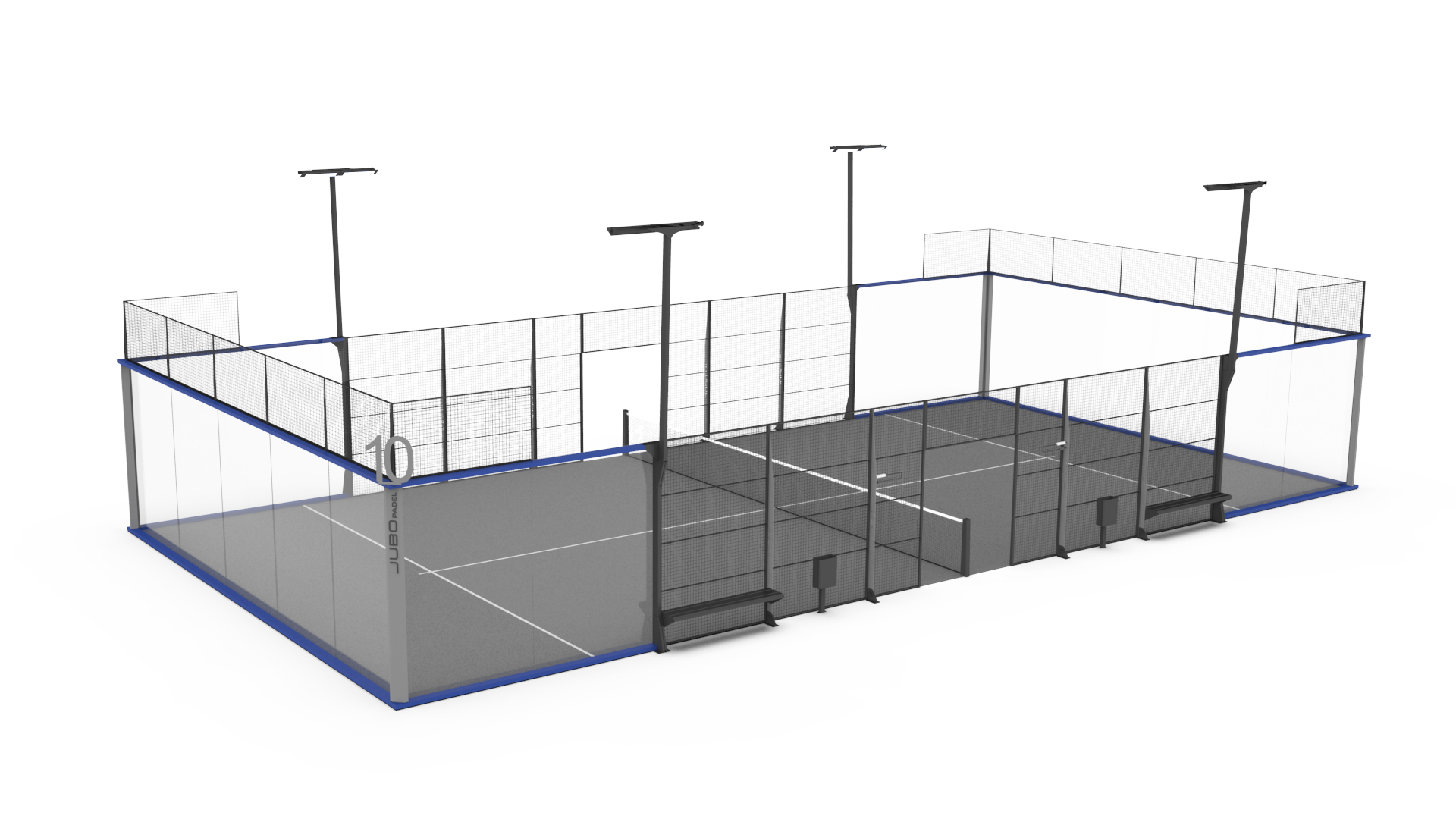

Strength, stability and durability for standard indoor and outdoor conditions. Designed to deliver premium playing performance at all levels and for intensive use. Recommended for padel clubs, hotels, private facilities and long-term sports projects.

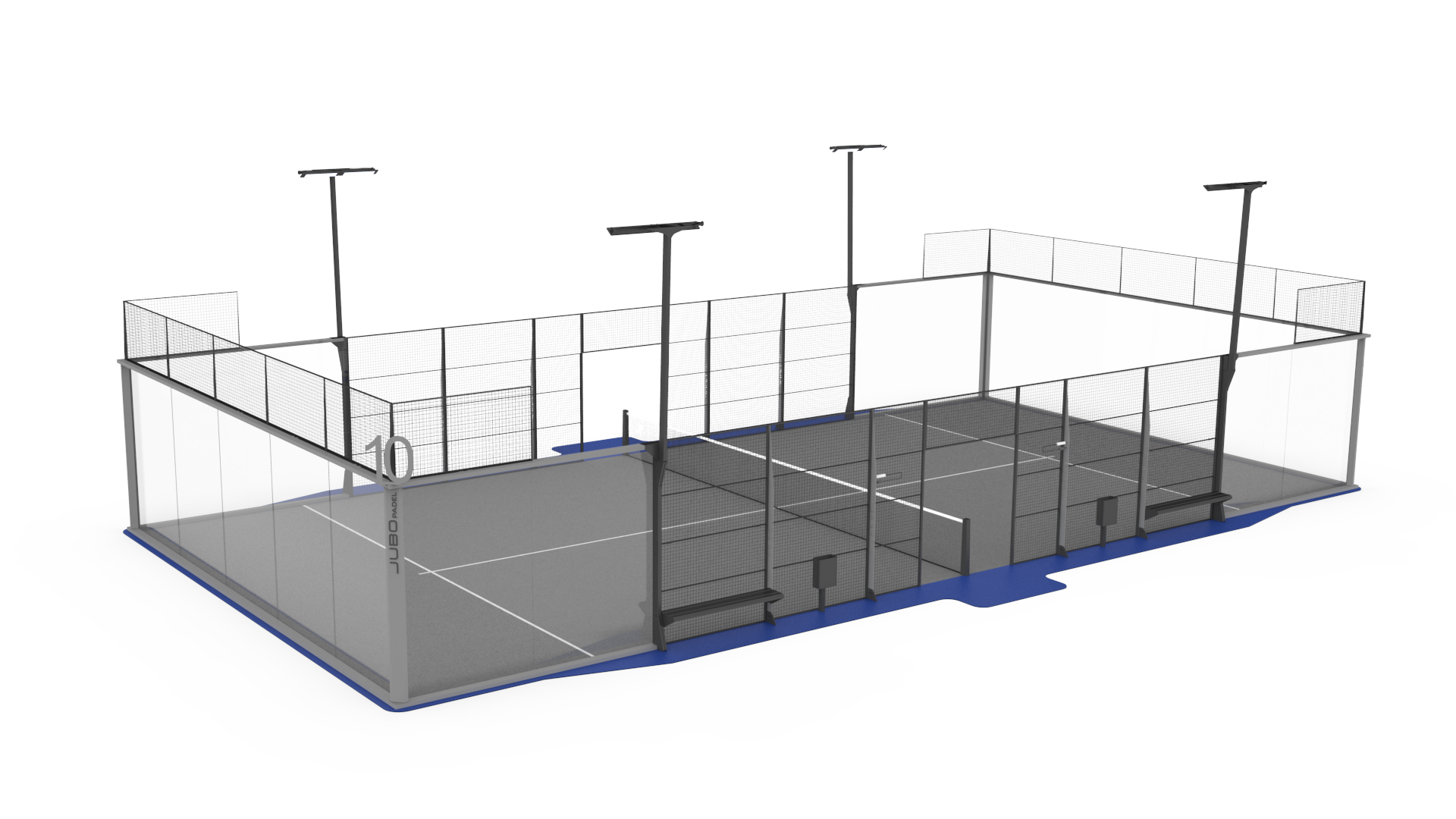

A pop-up panoramic padel court system designed to be assembled and disassembled without losing quality or playability. Its portable kit avoids permanent anchoring to the ground, making it ideal for temporary installations, tournaments and events.
Customization.
Whatever you need,
we can do it
Customize your padel court according to the identity, location and technical needs of your project. From structure colours, branding and lighting pillars to turf options, protective systems and accessories, the court can be adapted without losing its certified structural identity.
- Structure color
- Zinc primer
- Turf model & color
- Lighting pillars

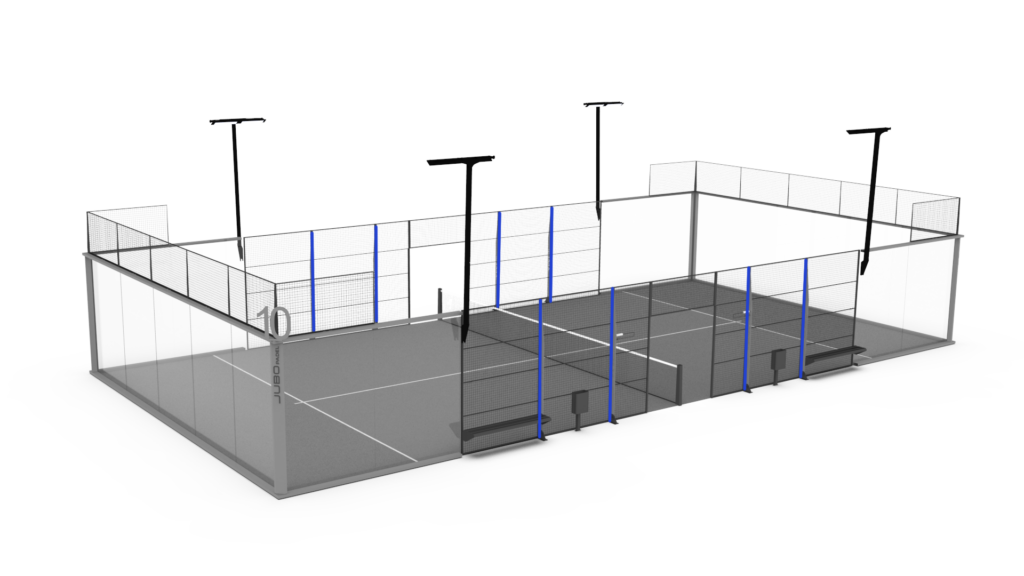

- Structural fins
- Court number
- Protectors

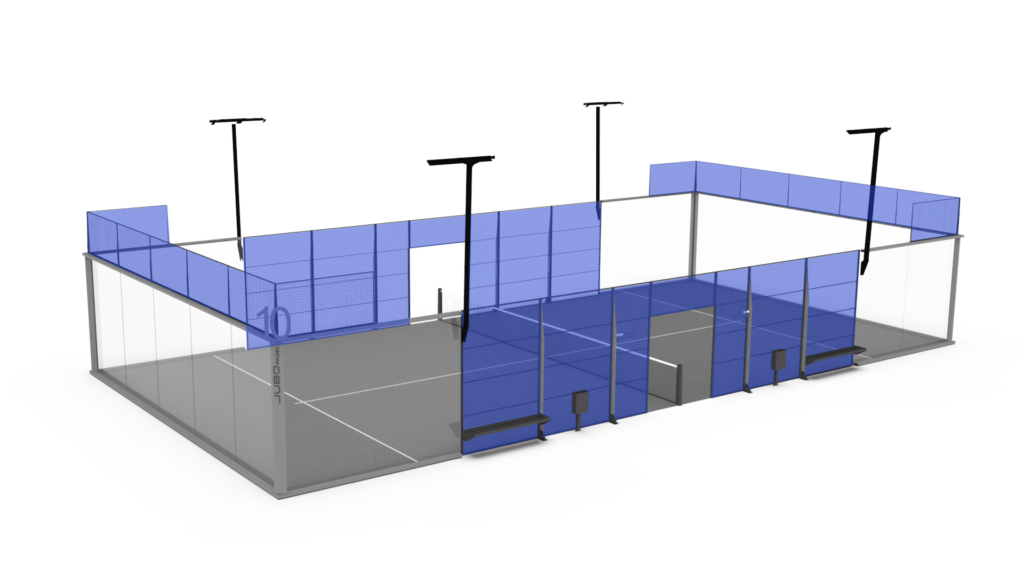

- Ball-stop nets
- Accesories
