Where certified robustness meets professional performance
Immerse yourself in the game with Vision Pro, the updated evolution of the Vision Classic model and one of the most robust and rigid courts in the JUBOpadel portfolio. Designed for facilities that require a powerful visual identity, certified structural performance and a clean, modern installation system, Vision Pro combines large-section pillars, reinforced mesh, high-quality tempered glass and advanced corrosion protection in one professional padel court.
Quality design for durability
A certified high-resistance padel court designed for intensive use.
Vision Pro is engineered to deliver long-term strength, stability and a premium playing experience in clubs, hotels, private facilities and professional projects. As a UNE 147201:2024 certified padel court designed according to Eurocode structural criteria, it brings together certified performance, robust construction and a clean, modern installation system.
Its structure combines large 120 x 60 x 2 mm pillars, 60 x 60 x 2 mm crossbeams, double anchor plates and reinforced structural fins to create an ultra-sturdy perimeter without compromising aesthetic precision. The tempered glass is installed flush with the mesh to reduce exposed edges, improve court continuity and create a safer, cleaner and more professional playing area.
With Vision Pro, strength, safety and design work together in one of the most robust court systems in the JUBOpadel portfolio.
Technical Specifications
Performance built
on technology

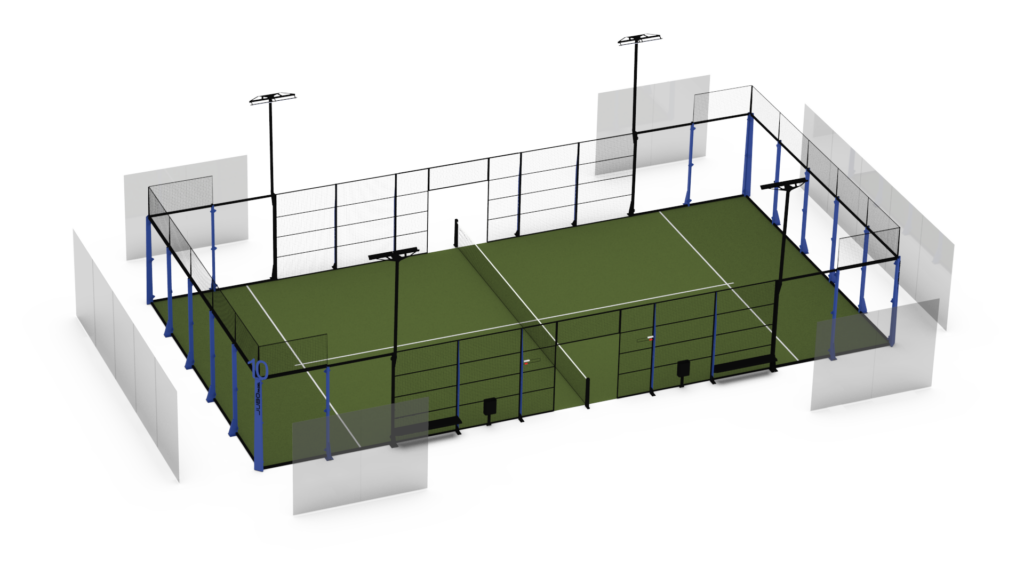

Tempered glass
In accordance with the International Padel Federation standards for tempered glass, Vision Pro uses 12 mm thick glass with flat polished edges, perfect planimetry and competition-ready design.
The court includes 18 glass panes of 2995 x 1995 mm with countersunk holes, covering a total of 108 m². Each pane is anchored with countersunk screws protected by UV-treated polyamide sleeves, together with locknuts, nuts and screws in 316-grade stainless steel, metric 10 mm.
High-quality neoprene gaskets absorb shocks and vibrations between the glass and the metal structure, improving safety, durability and playing comfort.
Patented structural system meets Eurocodes standards.
Versions. Choose the structural system your project needs
Depending on the weather conditions to which the padel court will be subjected, or whether the installation needs to be fixed or temporary, Vision Pro keeps the same playing performance, maximum elegance and professional design.
Strength, stability and durability for standard indoor and outdoor conditions. Designed to deliver premium playing performance at all levels and for intensive use. Recommended for padel clubs, hotels, private facilities and long-term sports projects.
A pop-up padel court system designed to be assembled and disassembled without losing quality or playability. Its portable kit avoids permanent anchoring to the ground, making it ideal for temporary installations, tournaments and events.
Customization.
Whatever you need,
we can do it
Customize your padel court according to the identity, location and technical needs of your project. From structure colours, branding and lighting pillars to turf options, protective systems and accessories, the court can be adapted without losing its certified structural identity.
- Structure color
- Zinc primer
- Turf model & color
- Lighting pillars
- Structural fins
- Court number
- Protectors
- Ball-stop nets
- Accesories
